S3 Batch Operations - Lambda

December 20, 2023 4 minute read

Introduction

I recently encountered the task of modifying and relocating millions of objects within an S3 bucket. Using Glue or EMR for this task would require significant effort and time, and these solutions are not ideally suited for storage management tasks. Given the large number of objects involved, using a script wasn’t the best approach, leading me to choose S3 Batch Operations as the preferred alternative.

S3 Batch Operations can perform actions across billions of objects and petabytes of data. To accomplish this, we generate a job comprising a list of objects and the corresponding actions we intend to execute. S3 Batch Operations supports several types of operations such as:

Copy objects
Invoke AWS Lambda function
Replace all objects tags
Delete all objects tags
Replace access control list
Restore objects with Batch Operations
S3 Object Lock retention
S3 Object Lock legal hold
Replicating existing objects with S3 Batch Replication

Check the documentation for more information on each operation: Operations supported by S3 Batch Operations

This quick guide will specifically concentrate on triggering an AWS Lambda function through S3 Batch Operations and the essential prerequisites for its functionality. For a more comprehensive understanding, refer to the extensive AWS documentation; this post serves as a quick reference for high-level insights.

Setup

Manifest file

The manifest file serves as a comprehensive list of objects on which you intend to execute a Lambda function using S3 Batch Operations. It can be a simple CSV file with the following columns: bucket, key, version ID. The version ID column is optional and can be left out if you don’t need it.

Please note that object keys have to defined in the URL form.

For example, if we have an object with the following S3 URI
s3://test/report/date=2023-01-01/id=XYZ/test.snappy.parquet in manifest file we will put its key as report/date%3D2023-01-01/id%3DXYZ/test.snappy.parquet

Also, CSV file should not contain headers.

Therefore, a CSV manifest file should look like:

test,report/date%3D2023-01-01/id%3DXYZ/test_1.snappy.parquet
test,report/date%3D2023-01-01/id%3DXYZ/test_2.snappy.parquet
test,report/date%3D2023-01-01/id%3DXYZ/test_3.snappy.parquet
...

The first column is the bucket name, followed by the object key. Version ID is not needed so we leave third column empty.

Batch Job Role

When setting up an S3 Batch Operations Job, you need to assign an IAM role for the job. This role has to have following permissions:

Assumed by S3 Batch Operations Service - Trust relationship that allow S3 Batch Operations service to assume this role:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "batchoperations.s3.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

Read S3 object - This permission allows Job to read manifest file and get the list of objects. For example broad read permission on test bucket:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetBucket*",
        "s3:GetObject*",
        "s3:List*"
      ],
      "Resource": [
        "arn:aws:s3:::test/",
        "arn:aws:s3:::test/*"
      ]
    }
  ]
}

Write S3 object - This permission allows job to write a report. This report is important since it will give us more information about failed tasks which we can further filter and reprocess.
Invoke Lambda function - Allows job to invoke a Lambda function which will process S3 objects:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "lambda:InvokeFunction"
      ],
      "Resource": [
        "arn:aws:lambda:us-east-2:123456789012:function:my-function"
      ]
    }
  ]
}

Lambda function

Event/Response Schema

When creating a Lambda function we have to be aware of the event and response schema. There are two schema versions, if version 1.0 is selected S3 Batch Operations will send the following event:

{
    "invocationSchemaVersion": "1.0",
    "invocationId": "<invocation-id>",
    "job": {
        "id": "<job-id>"
    },
    "tasks": [
        {
            "taskId": "<task-id>",
            "s3Key": "<s3-key-url-form>",
            "s3VersionId": "<version-id>",
            "s3BucketArn": "<arn-s3-bucket>"
        }
    ]
}

and expects a response in the following form:

{
  "invocationSchemaVersion": "1.0",
  "treatMissingKeysAs" : "PermanentFailure",
  "invocationId" : "<invocation-id>",
  "results": [
    {
      "taskId": "<task-id>",
      "resultCode": "<result-code>",
      "resultString": "<result-string>"
    }
  ]
}

The <result-code> defines the outcome of the Lambda function and can be:

Succeeded - Task completed
TemporaryFailure - Task temporarily failed and will be re-triggered before the job completes
PermanentFailure - Task permanently failed and won’t be re-triggered. It will be labeled as failed in the report

Handler Example

The following code is an example of a Lambda handler that copies an S3 object. Destination object key is dynamically generated based on source object key, which is not possible using an ordinary predefined Copy operation.

import logging
from urllib import parse
import boto3

logger = logging.getLogger(__name__)
logger.setLevel("INFO")

s3 = boto3.client("s3")


def lambda_handler(event, context):
    invocation_id = event["invocationId"]
    invocation_schema_version = event["invocationSchemaVersion"]

    results = []
    result_code = None
    result_string = None

    task = event["tasks"][0]
    task_id = task["taskId"]
    source_object_key = parse.unquote(task["s3Key"], encoding="utf-8")
    source_bucket_name = task["s3BucketArn"].split(":")[-1]

    try:
        destination_bucket_name = "report-dest"
        destination_bucket_key = source_object_key.replace("A", "B")
        copy_source = {
            "Bucket": source_bucket_name,
            "Key": source_object_key,
        }
        s3.copy(
            copy_source,
            destination_bucket_name,
            destination_object_key,
        )
        result_code = "Succeeded"
        result_string = f"Successfully copied object"
    except Exception as error:
        result_code = "PermanentFailure"
        result_string = str(error)
        logger.exception(error)
    finally:
        results.append(
            {
                "taskId": task_id,
                "resultCode": result_code,
                "resultString": result_string,
            }
        )
    return {
        "invocationSchemaVersion": invocation_schema_version,
        "treatMissingKeysAs": "PermanentFailure",
        "invocationId": invocation_id,
        "results": results,
    }

AWS Console

Creating an S3 Batch Operations Job through AWS Console is pretty straight-forward and is done in 3 steps.

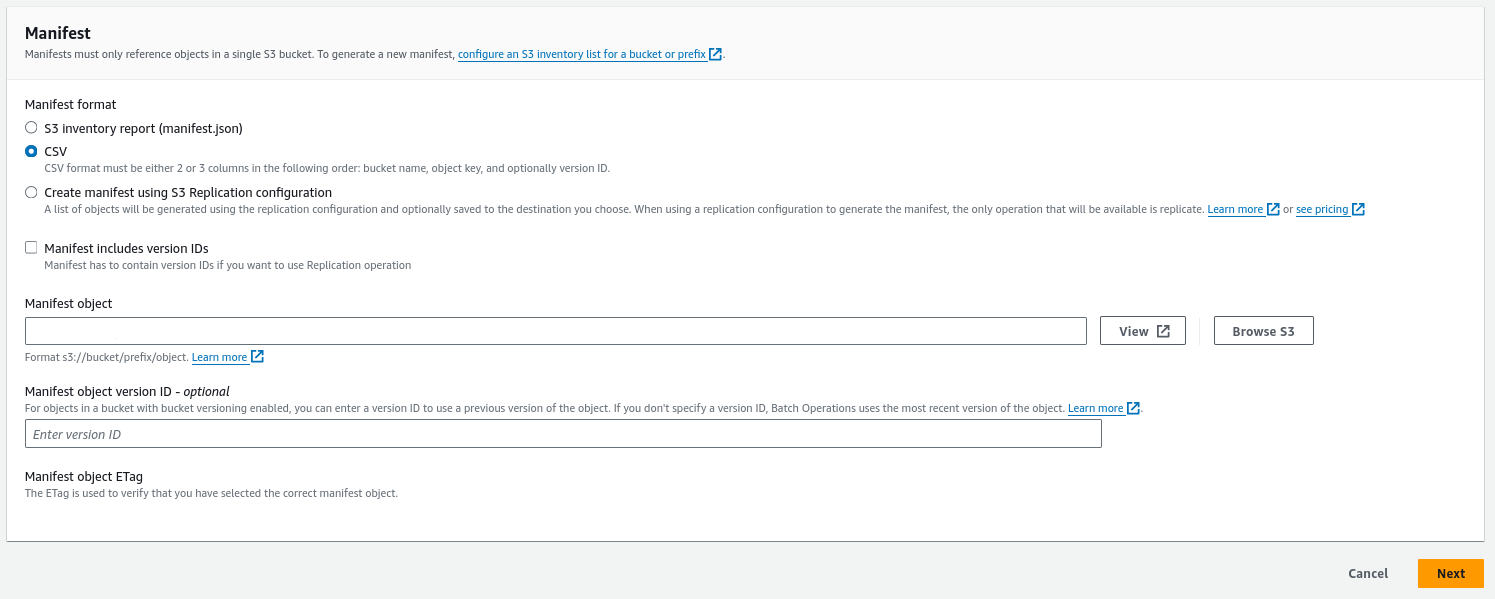

The first step is to choose a manifest file

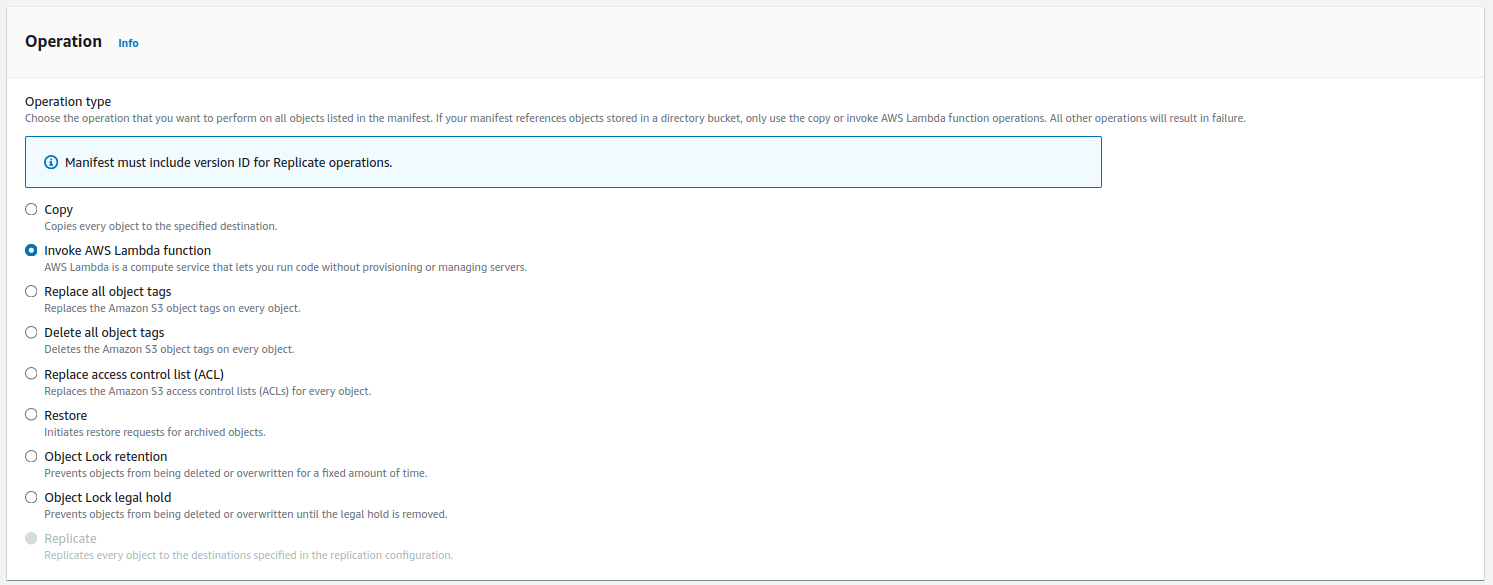

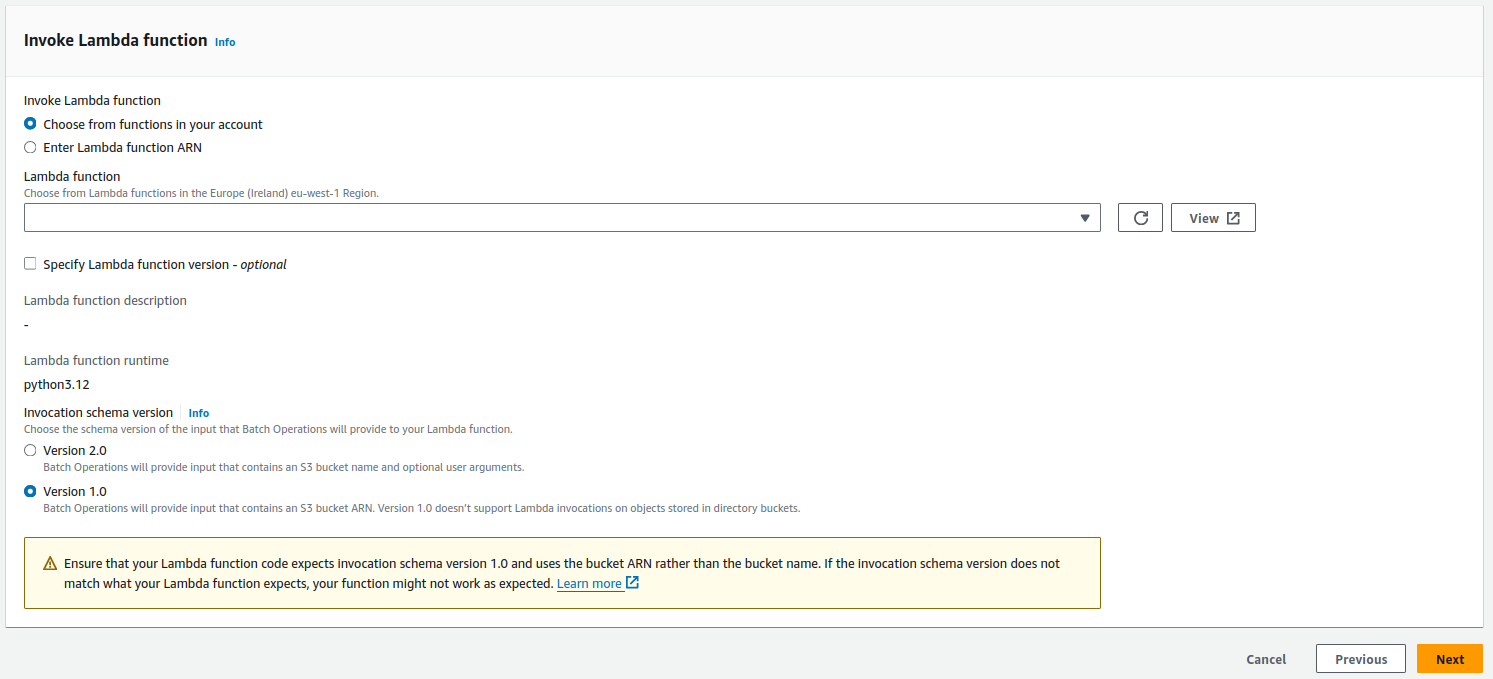

The second step is to choose an Operation and a Lambda function. Be sure to check Version 1.0 for invocation schema.

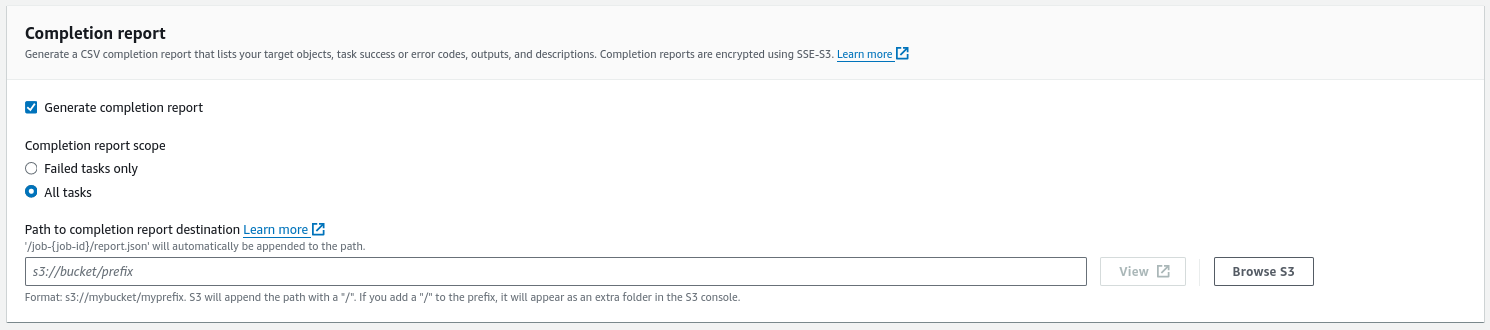

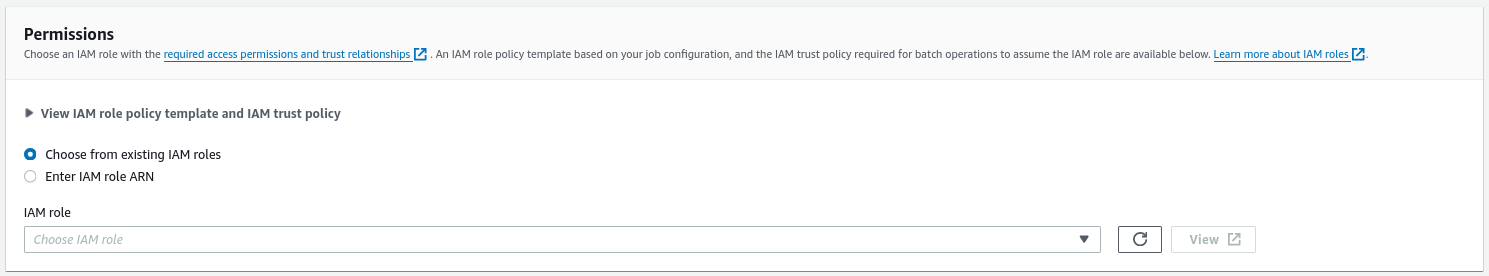

The last step is to choose a report path and a job role

After creating a job, it will be in the READY state - waiting for you to run it, it won’t get triggered automatically.

AWS SDK

Creating a job can be also done through code using create_job method S3Control.Client.create_job(**kwargs).

The same parameters apply, for example:

response = client.create_job(
    AccountId='<account-id>',
    ConfirmationRequired=False,
    Operation={
        'LambdaInvoke': {
            'FunctionArn': '<lambda-arn>'
        },
    },
    Report={
        'Bucket': '<report-bucket>',
        'Format': 'Report_CSV_20180820',
        'Enabled': True,
        'Prefix': '<prefix>',
        'ReportScope': 'AllTasks'
    },
    Manifest={
        'Spec': {
            'Format': 'S3BatchOperations_CSV_20180820',
            'Fields': [ 'Bucket', 'Key']
        },
        'Location': {
            'ObjectArn': '<object-arn>',
            'ETag': '<object-etag>'
        }
    },
    Description='<description>',
    Priority=10,
    RoleArn='<job-role-arn>',
)

The response will be a job ID.

Resources

Invoke AWS Lambda function
